| Product Name: | MIM Feedstock | Brand: | KADAM |
|---|---|---|---|
| Certificate: | ROHS & REACH | Type Of Substrate: | Carbonyl |
| Shape: | Grain | Size: | Standard |
| Delivery Terms: | FOB Shenzhen Port | Payment Terms: | T/T In Advance |
| Package: | Plastic Bucket | MOQ: | Could Be Negotiatable |
| Application: | All Available | Fabrication Type: | POWDER INJECTION MOLDING |
| Highlight: | Kovar Alloy MIM Metal Powder,Grain MIM Metal Powder,Carbonyl Stainless Steel Material |
||

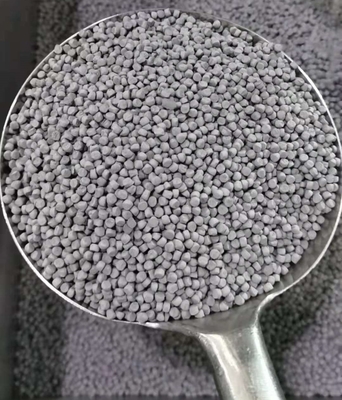

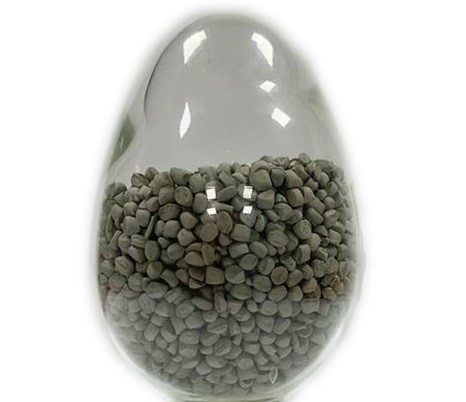

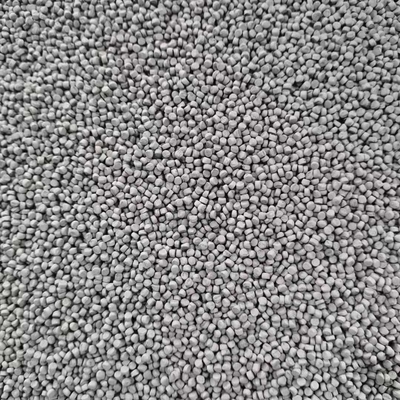

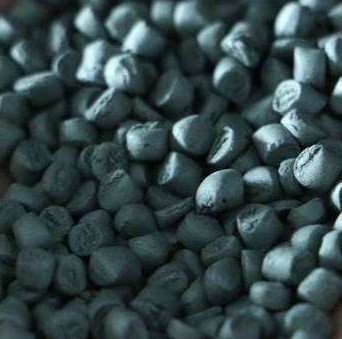

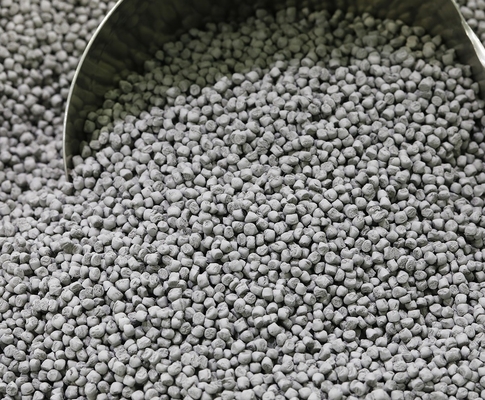

Kovar Alloy KDM-4J29 Gas-Water Atomized Metal Injection Molding Feedstock
Product DescriptionProduct Standard:
| Item | Unit | Specification | Test method |
| Melt flow index (MFI) | g/10min | 1000±500 | ISO1133 |
| Green part density | g/cm3 | 5.68±0.03 | ISO3369 |
| Sintering density | g/cm3 | >7.8 | ISO3369 |
Standard Processing:Standard injection molding machine for thermoplastic resins, based on the nitric acid catalytic debinding system.
Injection Molding:
|
Injection temperature |
Zone 1 | Zone 2 | Zone 3 | Nozzle |
| 180℃ | 185℃ | 190℃ | 195℃ | |
| Mold temperature | 90 ~ 125 ℃ | |||
| Screw speed | 50 r/min | |||
| Injection speed | 10 cm3/s | |||
| Molding pressure | 900 bar | |||
| Holding pressure | 900 bar | |||
| Holding time | 0.1~3 s | |||
